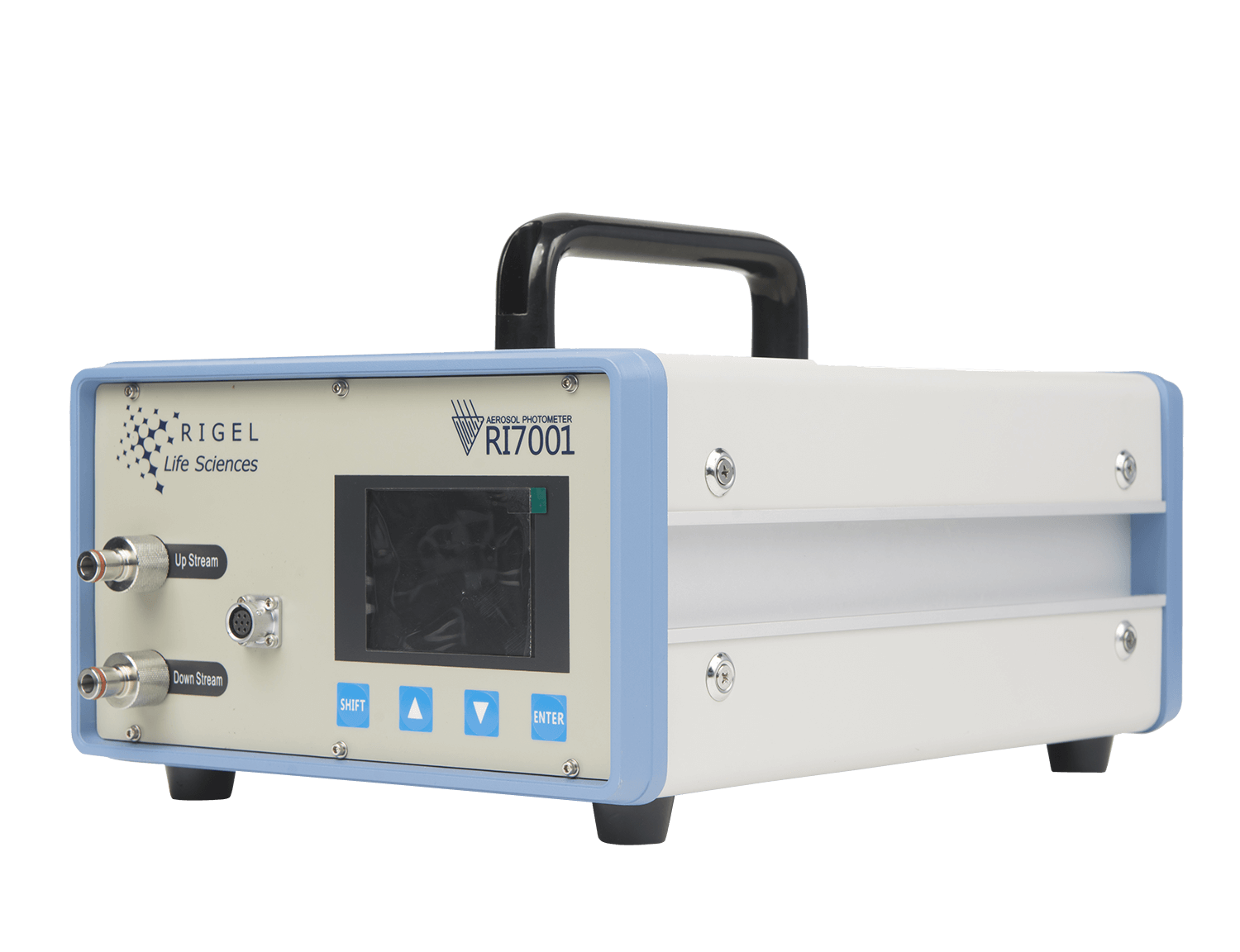

Rigel Digital Photometer RI7001
PRODUCT CODE
Product Details
The Rigel digital photometer RI7001 is the best choice for testing the integrity of HEPA filters. Using the light scattering method, the Rigel RI7001 provides real-time integrity through the detection of aerosol concentration upstream and downstream.
The 3.5″ LCD on the base unit provides an easy to read interface displaying sample concentration in real-time and frequency modes.
The scanning probe attachment not only focuses on the capture of the sample but adds value by incorporating a 2.8″ LCD screen, eliminating the need to look back at the main unit by placing pertinent sample data conveniently within the operator’s “line of sight” and the scanning probes point of application.
Moreover, the included thermal printer gives you the opportunity to report your samples in order to complete your tests or validation documents.
The Rigel digital photometer RI7001 tests, monitors and validates clean rooms, laminar flow hoods, safety cabinets, glove boxes, HEPA vacuum cleaners, HVAC systems, HEPA filters, ULPA filters, filtration units, negative pressure operating rooms, nuclear filter banks, collective protection filters
|
Type of device
|
Forward Light Scattering Photometer for aerosol concentration measuring
|
|
Field of use
|
HEPA/ULPA filter integrity/seal tests (ISO 14644-3 )
|
|
Measurement type
|
Concentration measurement:
-percentage from 0.0001% a 100.0% with respect to a reference value (10-80 µg/litre) -absolute with respect to a reference equal to 100 µg/litre |
|
Alarm threshold
|
Visual and/or audio alarm which can be selected by the user; active when a set threshold is exceeded
|
|
Output
|
RS232 connection
|
|
Reporting
|
-on internal memory (Save only mode)
-on the printer (Print only mode) -on the printer and internal memory (Print&Save mode) |
|
Scanning Probe
|
2.8” LCD Display, 2.5 m connection cable with Photometer
|
|
Light Source
|
Service life > 50,000 hours
|
|
Electrical supply
|
230 V (+-10%) 50-60 Hz single-phase 1A
|
|
Electrical protection
|
2 fuses 5×20 mm 250V F 2A
|
|
Ambient conditions during operation
|
Temperature from +1°C to + 40°C Relative humidity < 95% not condensing
|
|
Ambient storage conditions
|
Temperature from – 20°C to + 55°C Relative humidity < 95% not condensing
|
|
Dimensions (L x D x H)
|
260x370x160 mm
|
|
Weight
|
10 kg
|
