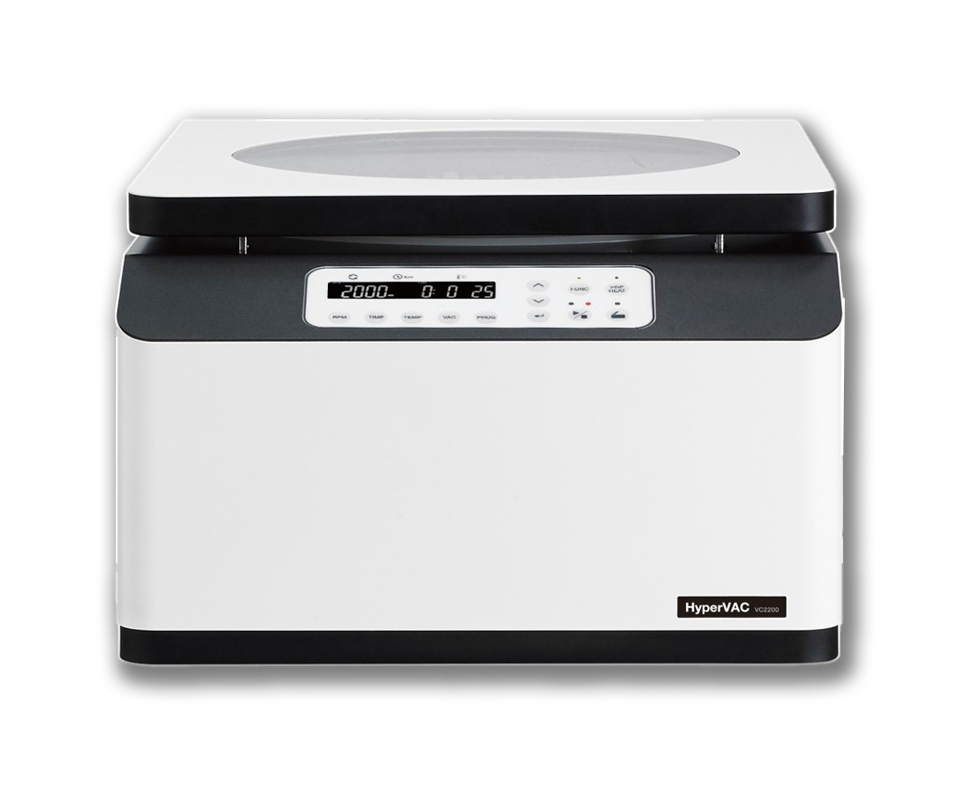

HyperVAC-MAX – Centrifugal Vacuum Concentrator

Request a quote

SKU: GYZHyper-VC2200
Add to Quote

HyperVAC-MAX Centrifugal Vacuum Concentrator (220V, 50/60Hz)

Features

• Tabletop centrifugal concentrators with high space efficiency
• Compatible with a diaphragm pump (7 mbar) optimal for volatile chemical solvents
• Accommodates a wide range of sample containers: 0.5, 2.0, 15, and 50 mL tubes and microplates
• Digital reading of TIME, TEMP, and VAC
• Controllable TIME and TEMP
• Efficient cold trapping by employing a drip catcher kit with ice cold trap
• Effective concentration of nucleic acids or small volume of organic solvents

SPECIFICATIONS

Technical Specifications

Max. RPM 2,000 rpm
Max. Capacity: Fixed angle 192 x 5ml
Max. Capacity: Swing-out 4 loadings of MTP or DWP
Auto start / ​Stop of vacuum Yes
Heating temperature range OFF, R.T. ~ 65℃
Operating time < 23 hr 59 min or continuous power requirement (Centrifuge, VA) 700
Power supply 230 V, 50 Hz (AC 220-230 V, 50/60 Hz; 110 V optional)
Centrifuge dimension ​(W x D x H, mm) 475 x 560 x 350
Weight (kg) 37 (without Rotor)
Cat. No. Hyper-VC2200 (Hyper-VC2200-110)
