Gyrozen Tabletop High-speed Centrifuge 1580

Request a quote

SKU: GYZ1580

Description
Attachment

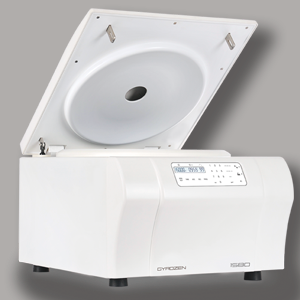

Tabletop high-speed centrifuge 1580

With a max speed of 15,000 RPMs, this Tabletop high-speed centrifuge 1580 has a user-intuitive interface and various interchangeable rotor heads, buckets and adaptors to support diverse applications in one unit.

SPECIFICATIONS

GYZ1580 Table top high-speed centrifuge

Features

The multi-purpose large-capacity centrifuges are designed for large-volume daily-working laboratories.
Max. Speed of 15,000 rpm with high capacity and a large assortment of rotors.
An intuitive control interface with numeric input buttons allows easy setting and editing of running conditions.
Selectable time mode of “at set SPEED” for counting running time only when reaching the set speed
A separate “PULSE” key for a quick spin.
Parameters can be changed during operation.
The essential lock function helps the set parameters secured during operation.
With motorized lid mechanics, only a gentle touch is sufficient to close and open the lid.
Lid drop protection design allows easiness and safety when loading or unloading samples.
A large assortment of rotors, buckets and adaptors support diverse applications doable with one instrument.

Technical Specifications – Tabletop high-speed centrifuge 1580


Max. RPM / Fixed angle	15,000 rpm	Max. RPM / Swing-out	5,000 rpm
Max. RCF / Fixed angle	24,249 x g	Max. RCF / Swing-out	5,394 x g
Max. capacity / Fixed angle	6 x 85 ml, 30 x 1.5/2.0 ml	Max. capacity / Swing-out	4 x 750 ml, 80 x 15 ml, 16 MTPs
Time control	Pulse, timed < 100 min or continuous	Time counting range	Selectable, at a set speed or from starting
RPM/RCF conversion	Yes	Noise level (dependent on the rotor)	≤60 dB
ACC/DEC ramps	9/10	Program memory	100
Parameters on the display window	RPM (RCF), Oper Status, Lid Open/Close, Min: Sec, ACC, DEC	Display	Blue LCD
Automatic rotor Identification	Yes	Imbalance cut-off	Yes
Safety lid lock	Yes	Lid drop protection	Yes
Motorized lid open & close	Yes	Automatic lid release at completion	Yes
Power supply (V/Hz)	230 V, 50 Hz (AC 220-230 V, 50/60 Hz; 110 V optional)	Power Requirement (kVA)	1.5
Dimension (W x D x H, mm)	540 x 650 x 380	Weight without rotor (kg)	57
CE MARK	Yes	Cat. No.	GZ-1580
