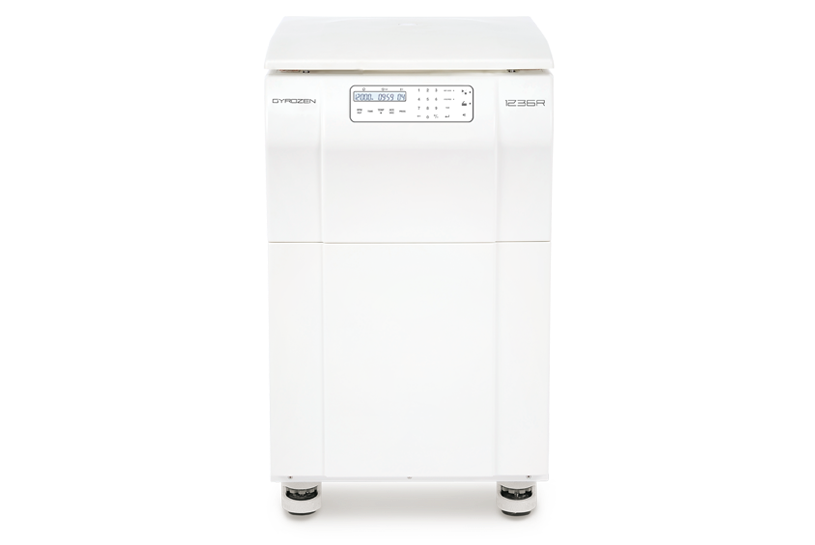

Floor-Standing High-speed Centrifuge 1236R

This entry-level Floor-Standing High-speed Centrifuge 1236R is designed for a multitude of uses within laboratory processing. This short working height unit ensure easy loading and unloading for your team and is available with an assortment of rotors, buckets and adaptors to support diverse applications.


GYZ1236R Floor standing Centrifuge



  • The multi-purpose large capacity centrifuges are designed for large-volume daily-working laboratories.
  • Max. speed of 12,000 rpm with high capacity and a large assortment of rotors.
  • Fast cooling function to 4℃ in 5 minutes for fast startup of cooled samples.
  • The compressor-off function when the lid is open minimizes unnecessary cooling and frosting.
  • An intuitive control interface with numeric input buttons allows easy setting and editing of running conditions.
  • Selectable time mode of “at set SPEED” for counting running time only when reached the set speed.
  • A separate “PULSE” key for a quick spin.
  • Parameters can be changed during operation.
  • The key lock function helps the set parameters secured during operation.
  • With motorized lid mechanics, only a gentle touch is sufficient to close and open the lid.
  • Lid drop protection design allows easiness and safety when loading or unloading samples.
  • The short working height of 84 cm (33 inches) ensures easy loading and unloading.
  • A large assortment of rotors, buckets and adaptors support diverse applications doable with one instrument.


Technical Specifications – Floor Standing High-speed Centrifuge 1236R

Max. RPM / Fixed angle 12,000 rpm Max. RPM / Swing-out 5,000 rpm
Max. RCF / Fixed angle 16,582 x g Max. RCF / Swing-out 5,394 x g
Max. capacity / Fixed angle 6 x 85 ml, 30 x 1.5/2.0 ml Max. capacity / Swing-out 4 x 250 ml, 48 x 15 ml, 16 MTPs
Temp range (℃) – 20℃ to 40℃ FAST cool button Yes
Time control Pulse, timed < 10 hr or continuous Time counting range Selectable, at set speed or from starting
RPM/RCF conversion Yes Noise level (dependent on rotor) ≤60 dB
ACC/DEC ramps 9/10 Program memory 100
Parameters on display window RPM (RCF), Oper Status, Lid Open/Close, Hr:Min, Temp, ACC, DEC Display Blue LCD
Automatic rotor Identification Yes Imbalance cut-off Yes
Safety lid lock Yes Lid drop protection Yes
Motorized lid open & close Yes Power supply (V/Hz) 230 V, 50 Hz (AC 220-230 V, 50/60 Hz; 110 V optional)
Power Requirement (kVA) 2.5 Dimension (W x D x H, mm) 473 x 610 x 830
Weight without rotor (kg) 110 CE MARK Yes
Cat. No. GZ-1236R
