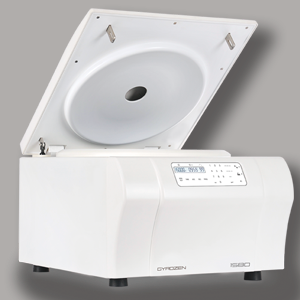

Gyrozen Tabletop High-speed Centrifuge 1580

Request a quote

SKU: GYZ1580
- +
Add to Quote

Tabletop high-speed centrifuge 1580

With a max speed of 15,000 RPMs, this Tabletop high-speed centrifuge 1580 has a user-intuitive interface and various interchangeable rotor heads, buckets and adaptors to support diverse applications in one unit.

SPECIFICATIONS

GYZ1580 Table top high-speed centrifuge

Features

  • The multi-purpose large-capacity centrifuges are designed for large-volume daily-working laboratories.
  • Max. Speed of 15,000 rpm with high capacity and a large assortment of rotors.
  • An intuitive control interface with numeric input buttons allows easy setting and editing of running conditions.
  • Selectable time mode of “at set SPEED” for counting running time only when reaching the set speed
  • A separate “PULSE” key for a quick spin.
  • Parameters can be changed during operation.
  • The essential lock function helps the set parameters secured during operation.
  • With motorized lid mechanics, only a gentle touch is sufficient to close and open the lid.
  • Lid drop protection design allows easiness and safety when loading or unloading samples.
  • A large assortment of rotors, buckets and adaptors support diverse applications doable with one instrument.

Technical Specifications – Tabletop high-speed centrifuge 1580


Max. RPM / Fixed angle 15,000 rpm Max. RPM / Swing-out 5,000 rpm
Max. RCF / Fixed angle 24,249 x g Max. RCF / Swing-out 5,394 x g
Max. capacity / Fixed angle 6 x 85 ml, 30 x 1.5/2.0 ml Max. capacity / Swing-out 4 x 750 ml, 80 x 15 ml, 16 MTPs
Time control Pulse, timed < 100 min or continuous Time counting range Selectable, at a set speed or from starting
RPM/RCF conversion Yes Noise level (dependent on the rotor) ≤60 dB
ACC/DEC ramps 9/10 Program memory 100
Parameters on the display window RPM (RCF), Oper Status, Lid Open/Close, Min: Sec, ACC, DEC Display Blue LCD
Automatic rotor Identification Yes Imbalance cut-off Yes
Safety lid lock Yes Lid drop protection Yes
Motorized lid open & close Yes Automatic lid release at completion Yes
Power supply (V/Hz) 230 V, 50 Hz (AC 220-230 V, 50/60 Hz; 110 V optional) Power Requirement (kVA) 1.5
Dimension (W x D x H, mm) 540 x 650 x 380 Weight without rotor (kg) 57
CE MARK Yes Cat. No. GZ-1580
